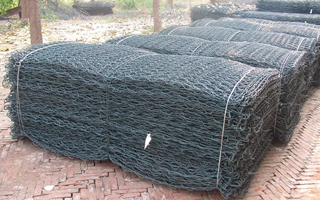

Gabion Box are also called “twisted-pair grid or Honeycomb Retaining Gabion Basket. made of double twisted steel woven wire mesh.

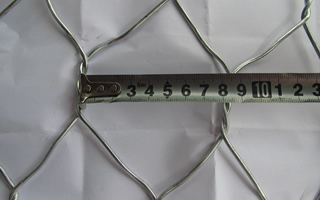

Hexagonal Mesh is available into galvanized and PVC/PE coated. It has a excellent quality of durable corrosion. PVC/PE coated have difference colors to choice. The size can be chosen according to the actual situation. our common mesh are 60*80mm, 80*100mm, 200*250mm
applications:
· Control and guide of water or flood
· Flood bank or guiding bank
· Preventing of rock breaking
· Water and soil protection
· Bridge protection
· Strengthening structure of soil
· Protection engineering of seaside area
|
The Specification Of Gabion Box |
|
Length |
Width |
Height |
Diaphragm |
Volume |
Tolerance |
|
2.0m |
1.0m |
0.3m |
1 |
0.6m3 |
|
|
3.0m |
1.0m |
0.3m |
2 |
0.9m3 |
|
|
4.0m |
1.0m |
0.3m |
3 |
0.2m3 |
|
|
2.0m |
1.0m |
0.5m |
1 |
1.0m3 |
L +/- 3% |
|
3.0m |
1.0m |
0.5m |
2 |
1.5m3 |
W +/- 5% |
|
4.0m |
1.0m |
0.5m |
3 |
2.0m3 |
H +/- 5% |
|
1.0m |
1.0m |
0.5m |
0 |
1.0m3 |
|
|
1.5m |
1.0m |
1.0m |
0 |
1.5m3 |
|
|
2.0m |
1.0m |
1.0m |
1 |
2.0m3 |
|
|
3.0m |
1.0m |
1.0m |
2 |
3.0m3 |
|
|
4.0m |
1.0m |
1.0m |
3 |
4.0m3 |
|
