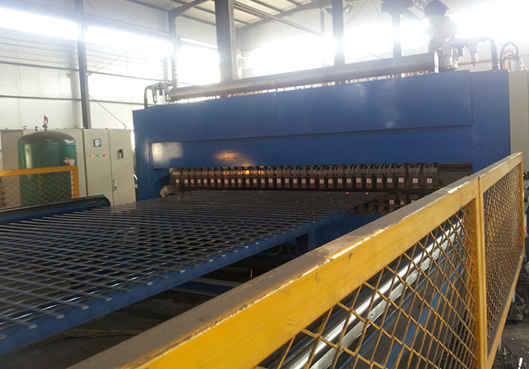

Reinforcing mesh refers to the reinforcement fabric which is made like this way:longitudinal and lateral reinforcing bars with same or different diameters are arranged vertically in certain space and all cross points are welded by resistance spot welding. It is reticular reinforcing products directly welded in factory so as to take the place of stretching and binding reinforcing bars manually,which is new, high-efficiency,energy-saving and reinforcing concrete structured material used for architecture.

Our reinforcing mesh is produced to highest quality standards and complies to ISO 9002
Material: galvanized iron wire, black iron wire, etc.

Applications:

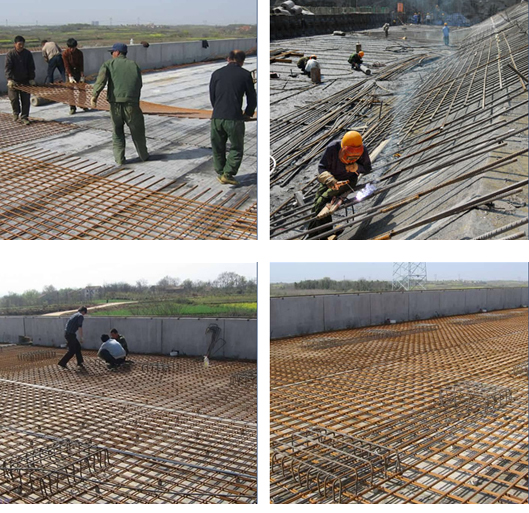

Reinforcing mesh is the most commonly used form of prefabricated reinforcement and is particularly suitable for flat slab construction and concrete surface beds. Other designed applications include:
* Retaining and shear walls
* Beams and columns
* Concrete paving overlays
* Precast concrete elements
* Suspended floor slabs
* Swimming pool and gunite construction

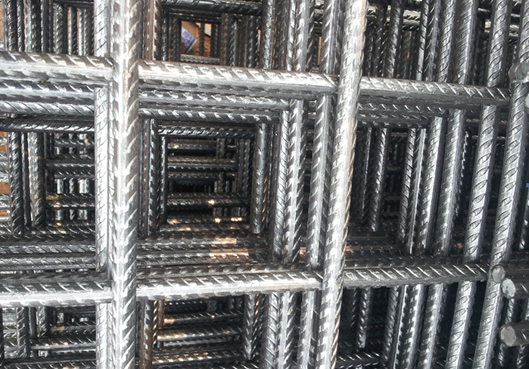

Features of reinforcing mesh
• The unique deformed wire pattern (curry pattern) offers superior bonding, improved stress distribution and crack-width control
• Ferro-Fabric is available in a wide range of diameters and apertures. The products can be bent to shape as required
• Manufactured from hard drawn wire (smooth) and cold rolled wire (deformed)
• All intersections are resistant-welded thereby not reducing the tensile strength of the wires
• Mesh has an average shear strength equal to 80% of the wire strength
• The wire used has physical properties which are rigidly controlled to produce mesh with maximum weld strength combined with ductility
• The steel specifications allow for cold rolled wire with a minimum ultimate tensile strength of 510Mpa and a high resistance to fatigue
• Mesh is available in black
